Product type：TFT LCD Module
Show contents：240x280
Outline size(mm) ：31.0x48x1.6
Size of View Window(mm)：1.7
Display size(mm) ：1.7
Effective size(mm)：27.97x32.63
Product application：Instrumentation, portable electronic devices
Visual angle：IPS
Backlight type or brightness：500cd/M2
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3
Driver chip model：ST7789
This 1.7-inch 240x280 TFT LCD display module is a product that combines multiple advantages.
High definition display with vibrant colors
The 1.7 inch 240x280 TFT LCD Display Modules adopts a 1.7 inch TFT LCD screen with a resolution of up to 240 × 3RGB × 280, which can present delicate and clear images. The NTSC color gamut reaches 58%, with rich color expression. Whether it is dynamic images or static graphics, it can present vivid visual effects. Whether it's the UI interface of a smartwatch, the readings of a portable instrument, or the monitoring information of industrial equipment, this screen can accurately reproduce and enhance the user's visual experience.
Low power design, stable and reliable
This 1.7 inch 240x280 TFT LCD Display Modules adopts a 4-wire 8-bit SPI serial interface, with strong compatibility and easy integration into various embedded systems. Built in ST7789 driver chip, supports 3.0~3.3V wide voltage operation, low power consumption, fast response speed, especially suitable for battery powered portable devices. In addition, its working temperature range covers -30 ℃ to+80 ℃, and its storage temperature range is -20 ℃ to+70 ℃, which can maintain stable operation even in extreme environments and meet the needs of industrial applications.
Anti image residue optimization, extending service life
Due to the use of a normally black panel design, prolonged display of static images may result in ghosting issues. For this reason, this 1.7 inch 240x280 TFT LCD Display Modules has specially optimized its anti ghosting strategy. It is recommended that users avoid displaying fixed patterns for more than 2 minutes and can protect the screen by dynamically refreshing or enabling a black screensaver. The backlight adopts constant current drive, with a typical brightness of 500 cd/m 2, ensuring clear visibility even in strong light environments.
Precise structure, easy to integrate

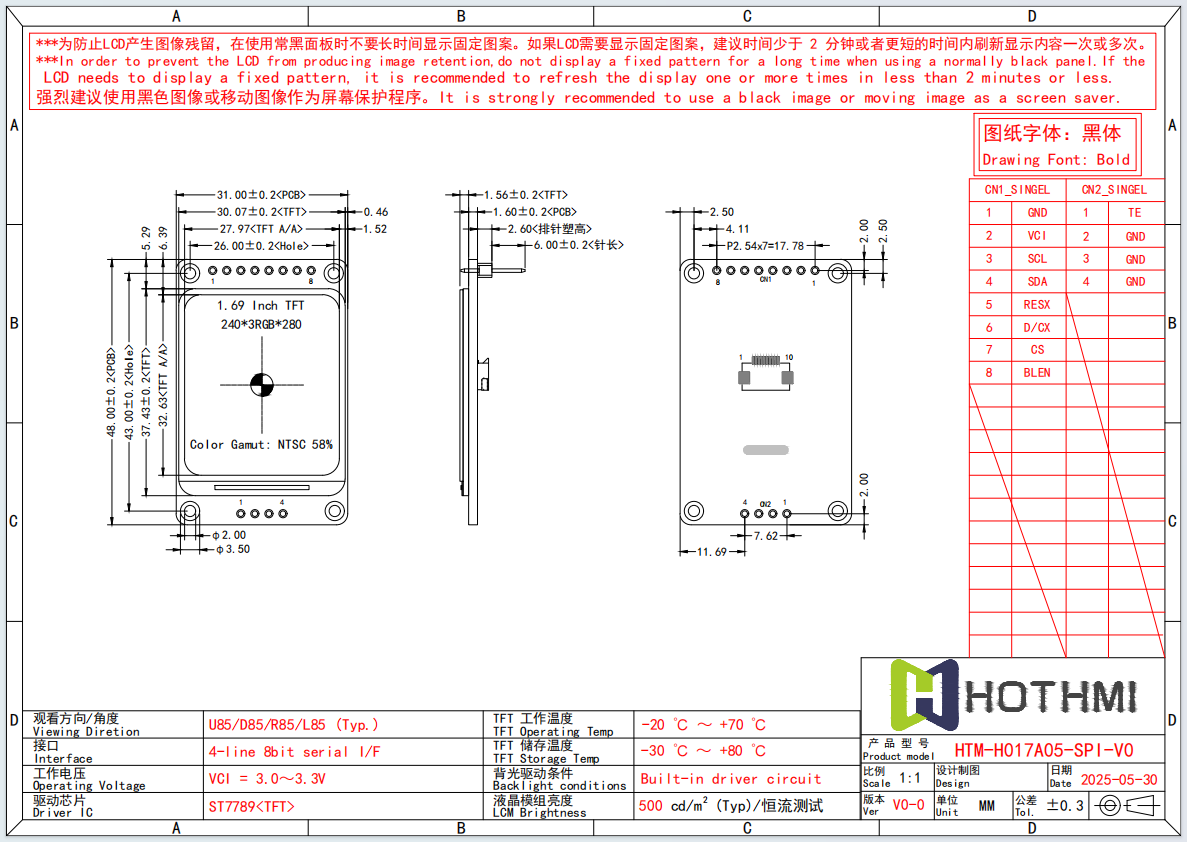

The mechanical structure of this 1.7 inch 240x280 TFT LCD Display Modules has been meticulously designed, with PCB size tolerances controlled within ± 0.2mm to ensure precise installation. Designed with standard pin set interface (CN1/CN2), it supports quick insertion and removal, making it convenient for development, debugging, and mass production. Whether embedded in compact smartwatches or integrated into industrial control panels, this module can provide stable and reliable display solutions.
Widely applicable scenarios
Smart wearable devices, such as smartwatches and health monitoring wristbands, feature high-definition displays with low power consumption to extend battery life.
Industrial control: suitable for HMI human-machine interface, resistant to high and low temperatures, and adaptable to harsh environments.
Medical equipment: Accurate color representation ensures clear and readable medical data.
Portable instruments: such as testing instruments and handheld terminals, perfectly combining lightweight size with high resolution.
This 1.7 inch 240x280 TFT LCD Display Modules provides reliable visual solutions for various smart devices with its excellent display performance, stable performance, and flexible adaptability. Whether it's enhancing product competitiveness or optimizing user experience, it's your ideal choice.
